Audio-technica draadloos 3000 serie ATW R3210 + ATW T3201, Beltpack
→ Snelle levering
→ Webshop 24/7 open
→ De klantenservice is elke werkdag tot 17:00 bereikbaar
→ Binnen 14 dagen gratis retourneren bij een onverhoopt probleem
Omschrijving
ATW-T3201 3000-Series - Body-pack transmitter - 3000 series wireless body-pack transmitter, 60 MHz UHF tuning bandwidth in each of four available frequency bands and Body-pack transmitter features tactile mute toggle switch.
Specificaties
All transmitters operate using two AA batteries and feature high- and low-level RF output settings. The low-level setting extends battery life while retaining a strong RF signal link. Charging terminals on the base of each transmitter work with the optional ATW-CHG3 and ATW-CHG3N charging docks to recharge AA NiMH batteries. Each transmitter’s OLED screen presents a great deal of setup and operating information, including battery indicator, mute status and operating frequency. Setup functions are menu-driven via soft-touch controls, which are covered to prevent accidental activation. A dual-color status LED illuminates green when power is on and red when the transmitter is muted or battery power is low.
Transmitters have a selectable high-pass filter and a gain setting that can be adjusted in 2 dB increments. As with the receiver, transmitter settings can be locked.

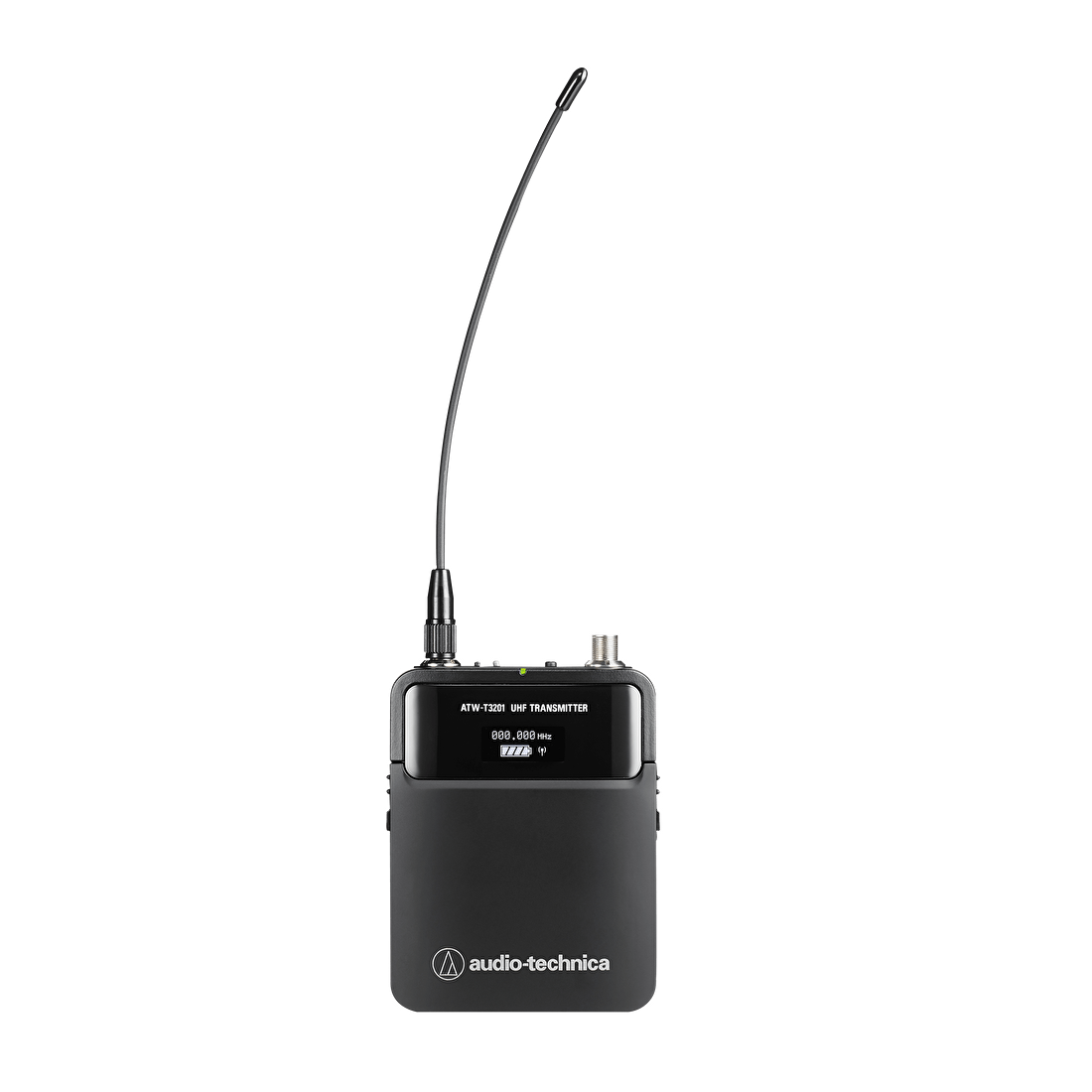

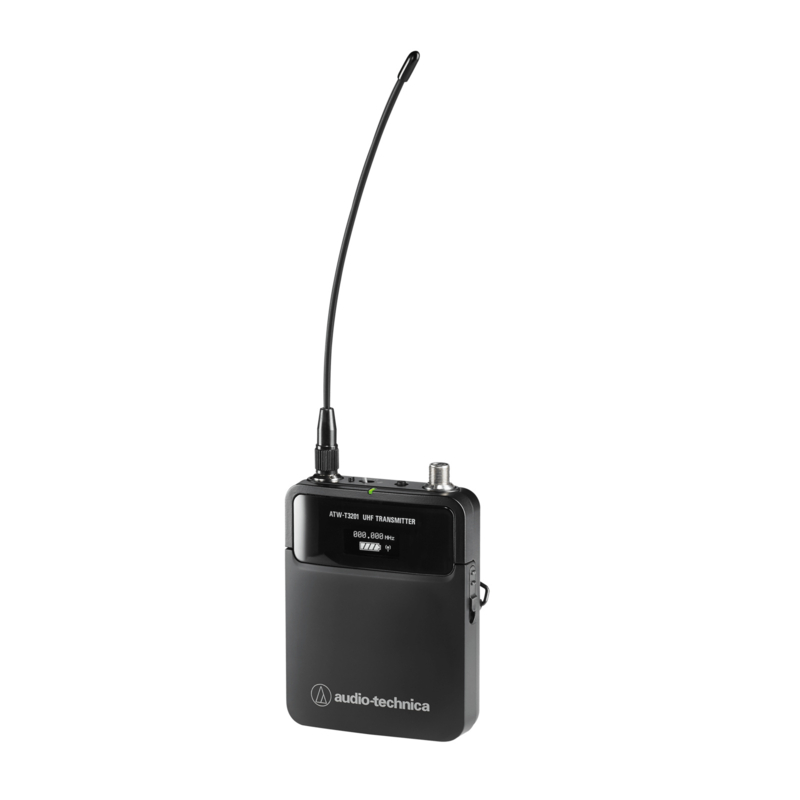

The ATW-T3201 body-pack transmitter features a tactile mute toggle switch (defeatable) for physical confirmation of the mute status when the transmitter display is not visible. It also has a multifunction button that can be programmed to perform one of two functions when pressed and held: turn off RF transmission or switch to a preselected backup frequency to avoid interference. (The multifunction button can also be disabled.) An input is available on the transmitter for lowimpedance microphone, and high-impedance musical instrument or line input. The transmitter supplies 5V DC bias to power condenser microphones. The rugged cH-style screw-down 4-pin input connector provides secure connection to cH-style lavalier mics, headworn mics, and cables. The durable metal body-pack transmitter features a field replaceable whip antenna, OLED screen, and a secure, locking battery compartment door.
- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in 6 frequency bands
- Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency
- IR sync functionality for ease of setup
- Rugged 4-pin cH-style screw-down connector provides secure connection
- Charging terminals on transmitters to recharge NiMH batteries
| Body Pack | |
|---|---|
| RF-stroomuitgang | High: 30 mW, Low: 10 mW (switchable), at 50 Ω |
| Batterijduur | High: 8.0 hours / Low: 9.0 hours (alkaline) High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage and environmental conditions. |
| Batterijtype | Two 1.5V AA, not included |
| Afmetingen | 64 mm x 82 mm x 23 mm (W x D x H) |
| Ingangsaansluitingen | 4-Pin screw down cH-Style Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V |
| Nettogewicht | 102 g |
| Ongewenste emissies | Following Federal and National Regulations |
