LD Systems MAUI® 11 G3

→ Snelle levering
→ Webshop 24/7 open
→ De klantenservice is elke werkdag tot 17:00 bereikbaar
→ Binnen 14 dagen gratis retourneren bij een onverhoopt probleem

Omschrijving

Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!

The MAUI 11 G3 delivers a huge, powerful and precise sound featuring 730 W RMS power (1,460 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

With its sleek and elegant design, the MAUI 11 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field.

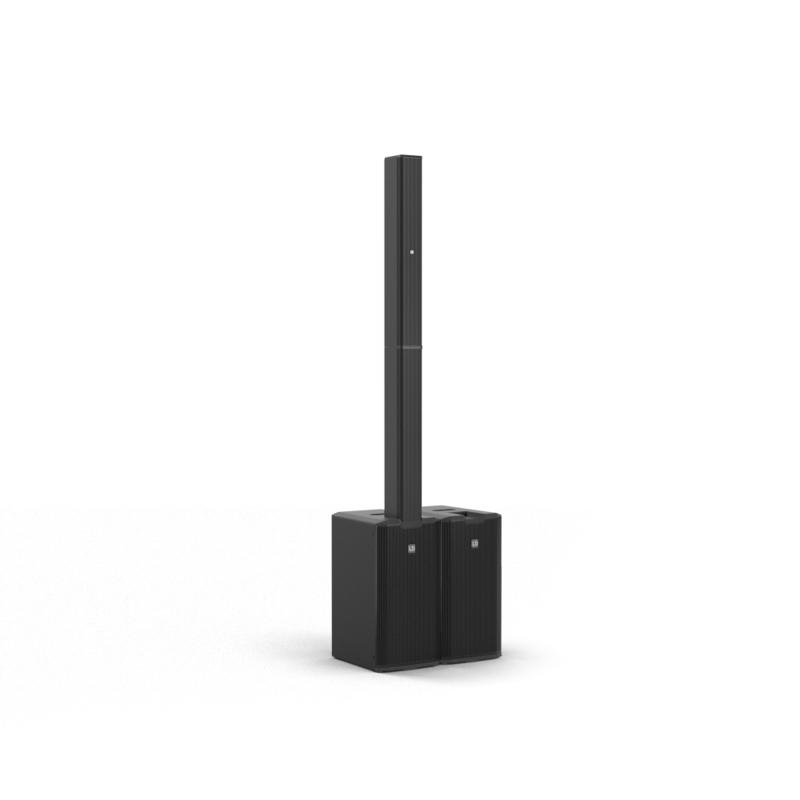

The columns of the MAUI 11 G3 are designed as cardioid units. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8'' woofers and four bass reflex ports, the MAUI 11 G3 subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

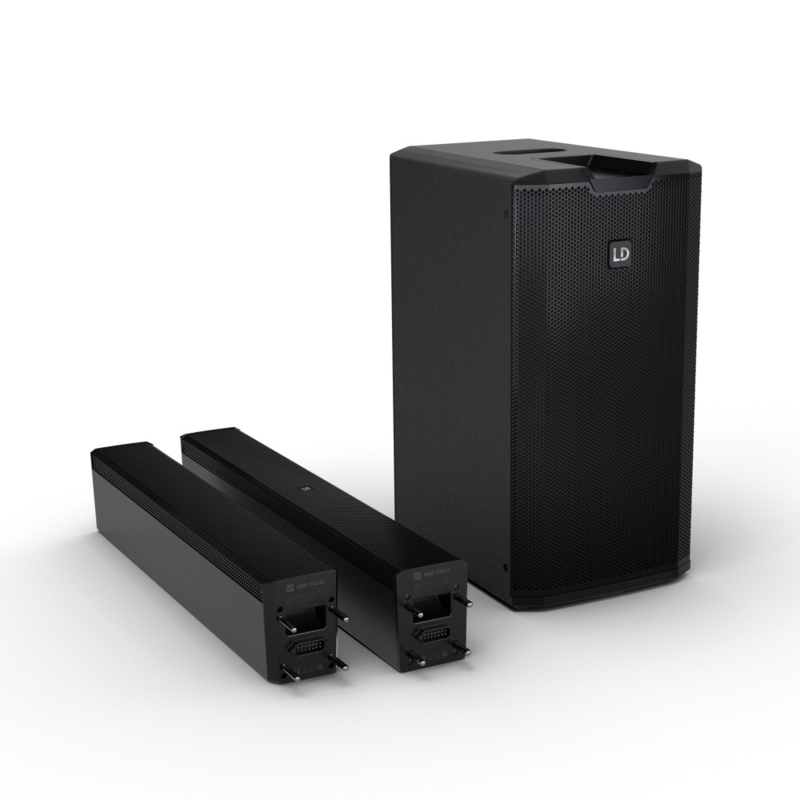

The MAUI 11 G3 is a real sound machine, yet also convinces with its smart features in the day-to-day life of DJs, musicians, and technicians. Thanks to Bluetooth 5.0 and AAC coding, the column PA becomes even more versatile. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...

Specificaties

General

Product type

PA Complete Systems

Type

Powered

Color

Black

Max. SPL (Peak)

125 dB

Frequency response (-10dB)

39 Hz - 20000 Hz

Dispersion (H x V)

120° x 30 °

Total Height

2052 mm

Weight

30,7 kg

Features

Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application

Subwoofer

Woofer dimensions

2 x 8 "

Woofer dimensions (mm)

2 x 203 mm

Woofer magnet

Ferrite

Woofer brand

Custom-made

Woofer voice coil

2 "

Woofer voice coil (mm)

50.8 mm

Cabinet construction

Bass Reflex

Housing material

15 mm Birch Plywood

Cabinet surface

Polyurea

Dimensions Subwoofer (W x H x D)

305 x 607 x 403 mm

Subwoofer weight

20.5 kg

Mid/Hi System

Midrange dimensions

6 x 3.5 "

Midrange dimensions (mm)

6 x 89 mm

Midrange magnet

Ferrite

Midrange brand

Custom-made

Midrange voice coil

0.75 "

Midrange voice coil

19 mm

Tweeter dimensions

2 x 1 "

Tweeter dimensions (mm)

2 x 25.4 mm

Tweeter magnet

Neodymium

Tweeter brand

Custom-made

Tweeter voice coil

1 "

Tweeter voice coil (mm)

25.4 mm

Wave Guide

CD Waveguide

Loudspeaker inputs

1

Speaker input connections

Custom-made multipin

Cabinet construction mid/high

Passive Cardioid

Mid/Hi system cabinet material

Aluminium

Mid/Hi system cabinet surface

Powder-coated

Mid/Hi system width

103 mm

Mid/Hi system height

1460 mm

Mid/Hi system depth

135 mm

Mid/Hi system weight

10.2 kg

Amplifier module (integrated in subwoofer)

Amplifier

Class D

System output (RMS)

730 W

System output (Peak)

1460 W

Protection circuits

DC protection, Multiband limiter, short circuit, thermal protection

Cooling

Convection

Controls

Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level

Indicators

Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode

Mains connector

IEC power cable (included)

Operating voltage

100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz

Fuse

T 3.15AL / 250 V

Power consumption

300 W

Ambient temperature (operating)

0 - 40 °C

Relative Humidity

< 80% (non-condensing)

Line Inputs

2

Line Input Connectors

Combo XLR / TRS

Line Outputs

1 x Sub OUT, 2 x THRU

Line Output Connectors

XLR male

Number of speaker outputs

1

Loudspeaker Output Connectors

Custom-made multipin

Bluetooth Standard

A2DP

Bluetooth Audio Decoder

AAC, SBC

DSP characteristics

Bit depth AD/DA converter

24 bit

Sampling frequency

48 kHz
